Pulse valve diaphragm is one of the core components of pulse valve, which plays the role of air blowing circuit switch in the dust removal system of pulse bag filter. This kind of diaphragm is usually made of rubber cloth or pure rubber, has the characteristics of double-sided pressure bearing, can ensure normal working and long service life in extremely harsh working environment. The working temperature range and pressure range of the diaphragm depend on its glue, fabric and structure, generally working at -20~80ºC, 0.3~0.8MPa, while the fluorine rubber and silicone rubber diaphragm can work at a wider temperature range of -40~220ºC.
Main Dimension
1.High strength tear resistance to ensure the flexibility of the diaphragm;
2.Good adhesion and tensile strength to ensure the sealing of the diaphragm;
3.Good corrosion resistance, can be used normally in compressed air containing oil, water and other components.

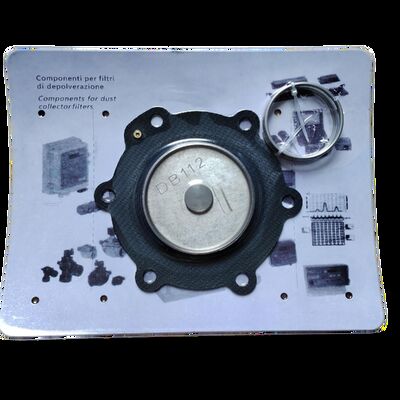

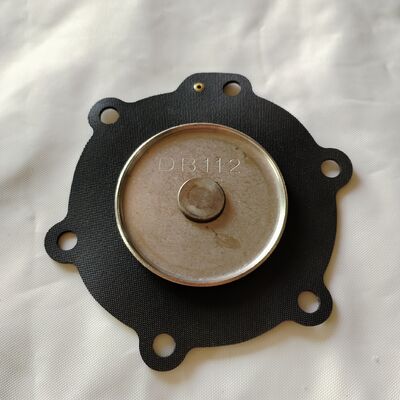

Detailed Photos
